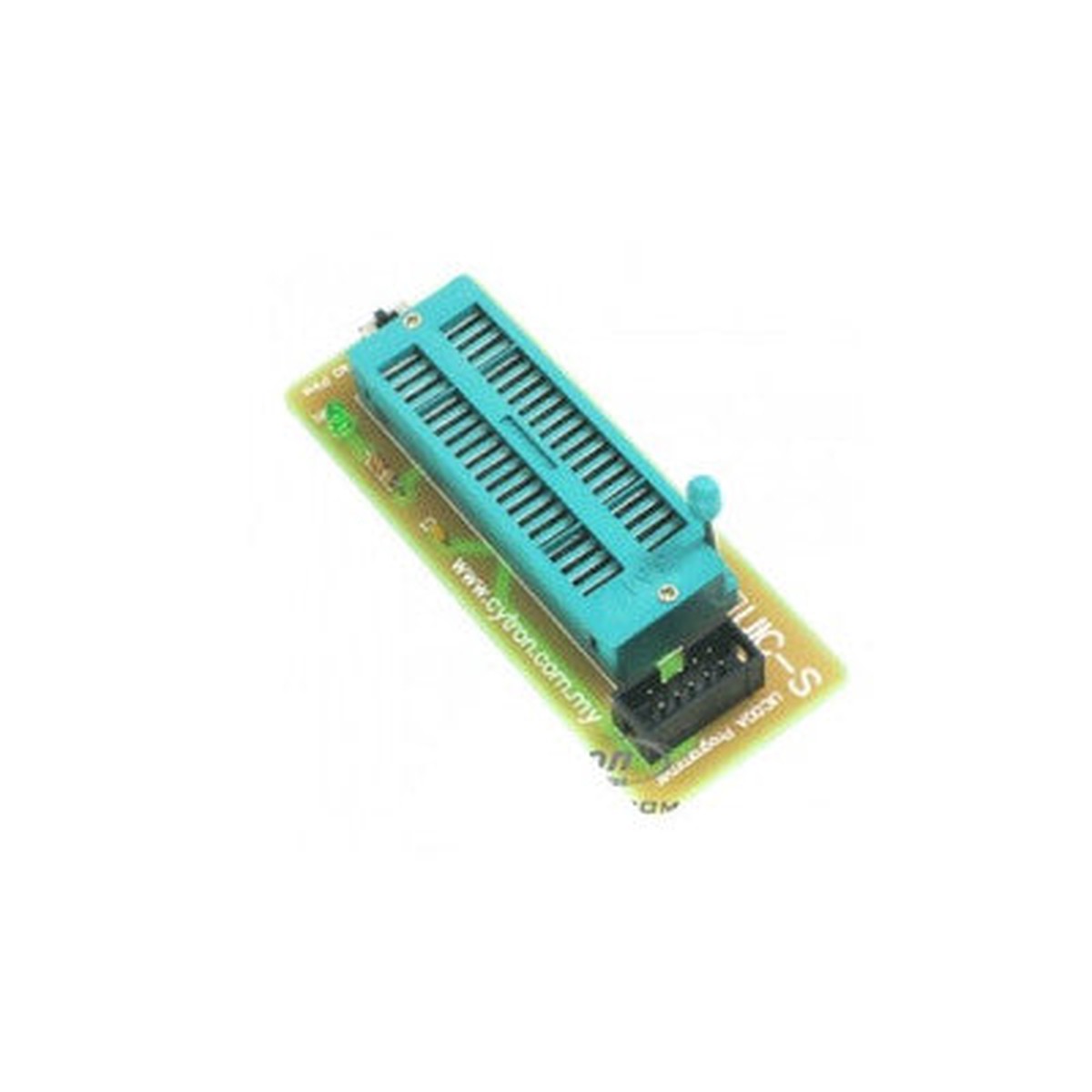

ICSP Programmer Socket UIC-S

A socket for UIC00A/B, USB ICSP PIC Programmer

• Supported PIC: PIC16F84A (18-pin), PIC16F628A (18-pin), PIC16F876A (28-pin), PIC16F886 (28-pin), PIC18F2550 (28-pin), PIC16F877A (40-pin), PIC16F887 (40-pin), PIC18F452 (40-pin), PIC18F458 (40-pin), PIC18F4520 (40-pin), PIC18F4580 (40-pin), PIC18F4550 (40-pin)
• Supports: 18-pin, 28-pin & 40-pin 8-bit PIC (PIC16F & PIC18F) microcontroller

Features:

• No external power needed
• Power Indicator LED on board
• Fits perfectly with UIC00A and UIC00B
• Supports 18-pin, 28-pin, and 40-pin 8-bit PIC microcontroller

The UIC-S is a socket for UIC00A/B, USB ICSP PIC Programmer. Combined with UIC00A/B, the user will get a standalone USB programmer. The 40-pin ZIF (Zero Insert Force) socket provides easy plug and unplug of PIC during development (download program). It supports 18-pin, 28-pin & 40-pin 8-bit PIC (PIC16F & PIC18F) microcontroller.

Package Includes:

• 1 x ICSP Programmer Socket UIC-S

Specifications:

• PCB Size (L x W) mm: 92 x 35
• Weight (gm): 38

Images are for illustration only; actual product may vary.
