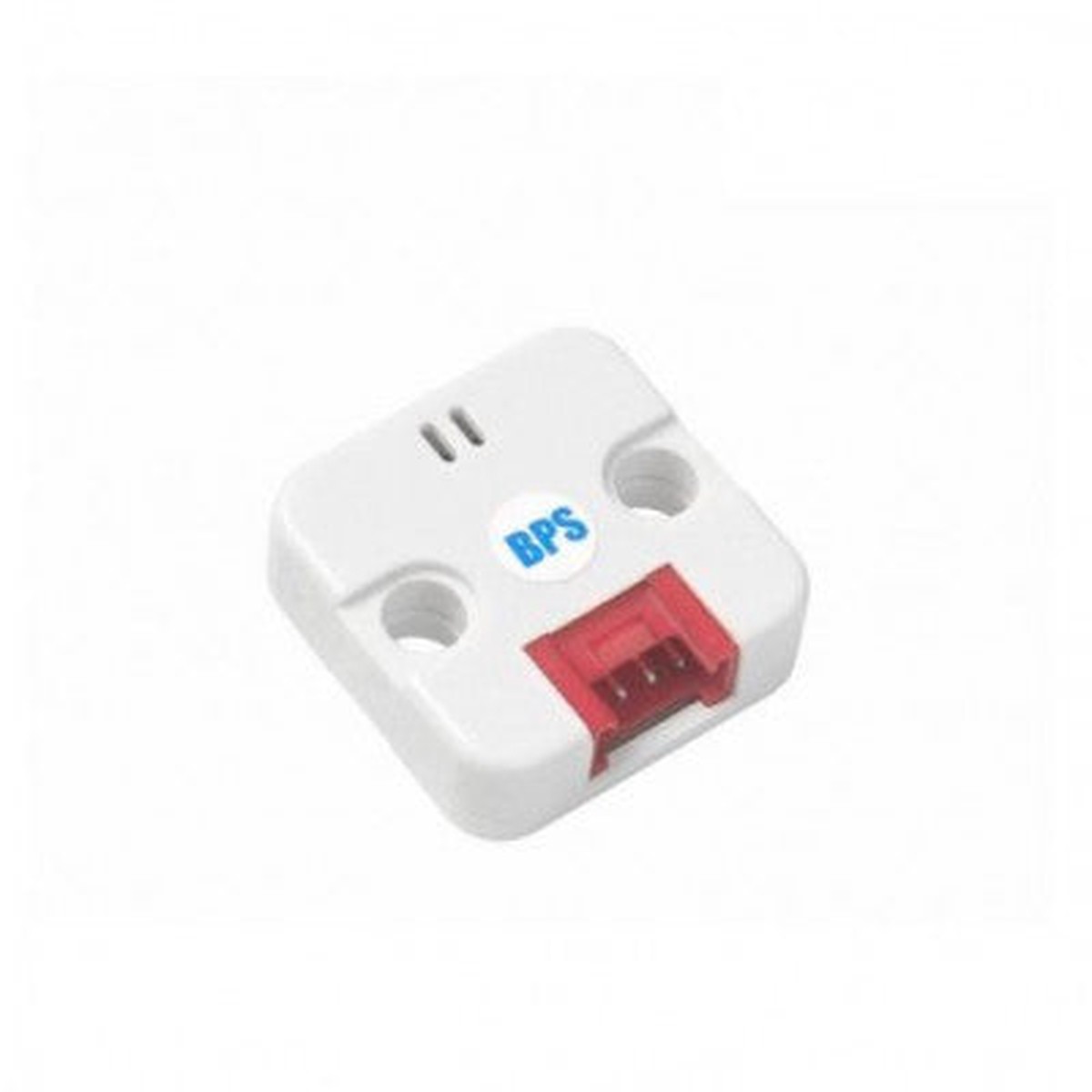

Barometric Pressure Unit

A barometer unit with Bosch bmp280 sensor for atmospheric pressure and altitude estimation.

• Air Pressure Measurement Range: 300-1100 hPa (+9000m to -500m)
• Absolute Accuracy: 1hPa
• Relative Accuracy: 0.12hPa
• Temperature Measurement Range: -40C to +85C
• Temperature Resolution: 0.01C
• Pressure Resolution: 0.16Pa
• Temperature Coefficient Offset: 1.5 Pa/K (12.6 cm/K)
• Current Consumption: 2.7A @ 1 Hz sampling rate
• Length (mm): 24
• Width (mm): 24
• Height (mm): 13
• Weight (gm): 8

Top Features:

• Air pressure sensor with on-chip temperature sensor
• Accuracy of 0.12hPa
• Temperature drift coefficient of 1.5Pa/K
• Supports periodic measurement

The Barometric Pressure Unit is equipped with a Bosch bmp280 pressure sensor to accurately measure atmospheric pressure and estimate altitude. With a relative accuracy of 0.12hPa, it can detect a 1m height difference. The temperature drift coefficient is low at 1.5 Pa/K, ensuring precise temperature compensation. Additionally, the chip includes an integrated temperature sensor.

Applications include wearable devices, motion tracking, and UAV attitude determination. The unit supports low power consumption and features an internal integrated 5-segment filter. It is compatible with development platforms like Arduino and uiflow (Blockly, Python) and includes 2x LEGO compatible holes for versatile mounting options.

Package Includes:

• 1x Barometric Pressure Unit
• 1x Grove Cable (5cm)

Images are for illustration only; actual product may vary.
