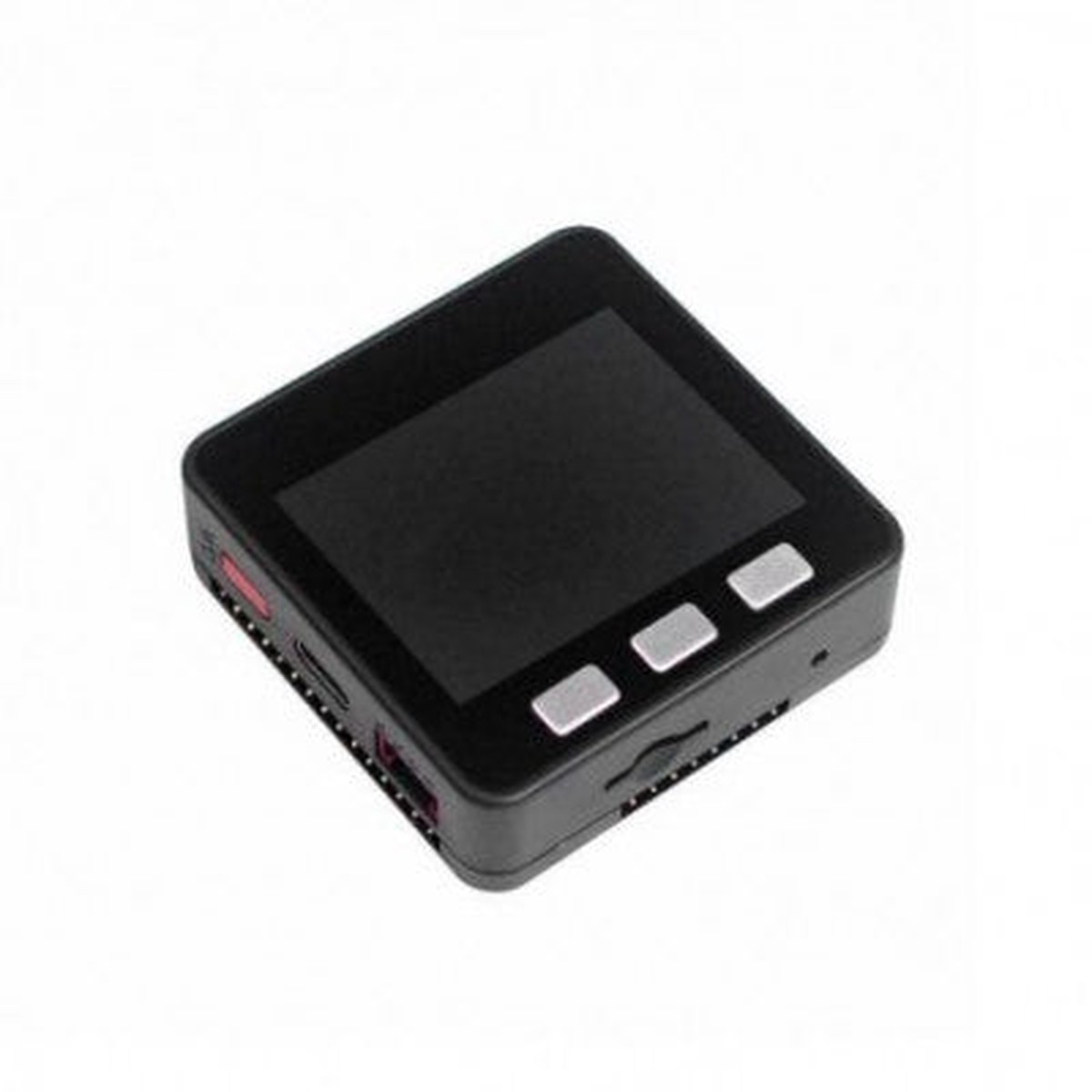

M5 Stack BASIC Kit

A versatile and affordable starter kit for IoT exploration

• Memory: 16MB Flash
• Operating Voltage (VDC): 5
• Operating Current (A): 0.5
• Cable Length (cm): 20
• Interface: GROVE(I2C+I/0+UART) x 1, TypeC x 1
• Core Bottom Port: PIN (G1G2G3G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36)
• Speaker: 1W-0928
• Battery: Lithium Battery 110mAh @ 3.7V
• Operating Temperature (C): 0 to 40
• Length (mm): 54
• Width (mm): 54
• Height (mm): 18
• Weight (gm): 47

Top Features:

• ESP32-based
• Built-in Speaker, Buttons, Color LCD
• Power/Reset button
• TF card slot (16G Maximum size)

M5 Stack BASIC Kit is a modular, stackable, scalable, and portable device powered by an ESP-32 core. It offers a friendly price and full-featured resources, making it an ideal starter kit for IoT exploration. The kit integrates Wi-Fi & Bluetooth modules, a dual-core processor, and 16MB of SPI Flash, enabling rapid IoT prototyping.

The M5 Stack BASIC Kit supports various development platforms and programming languages, including Arduino, Blockly language with UIFlow, and Micropython. With its versatile features and supportive ecosystem, M5 Stack BASIC Kit guides developers of all skill levels through the product development process.

Compared to ESP8266, ESP32 offers more GPIOs, analog inputs, and outputs, along with additional peripherals. The kit includes two separable parts: the top part with processors and chips, and the bottom part with a lithium battery and extendable pins. It is suitable for applications such as IoT terminal controllers, STEM education products, DIY creations, and smart home equipment.

Package Includes:

• 1 x ESP32 Basic Core IOT Development Kit
• 10x Dupont Cable
• 1x Type-C USB(20cm)
• 1x User Manual
• 1x Sticker

*Images are for illustration only; actual product may vary.
