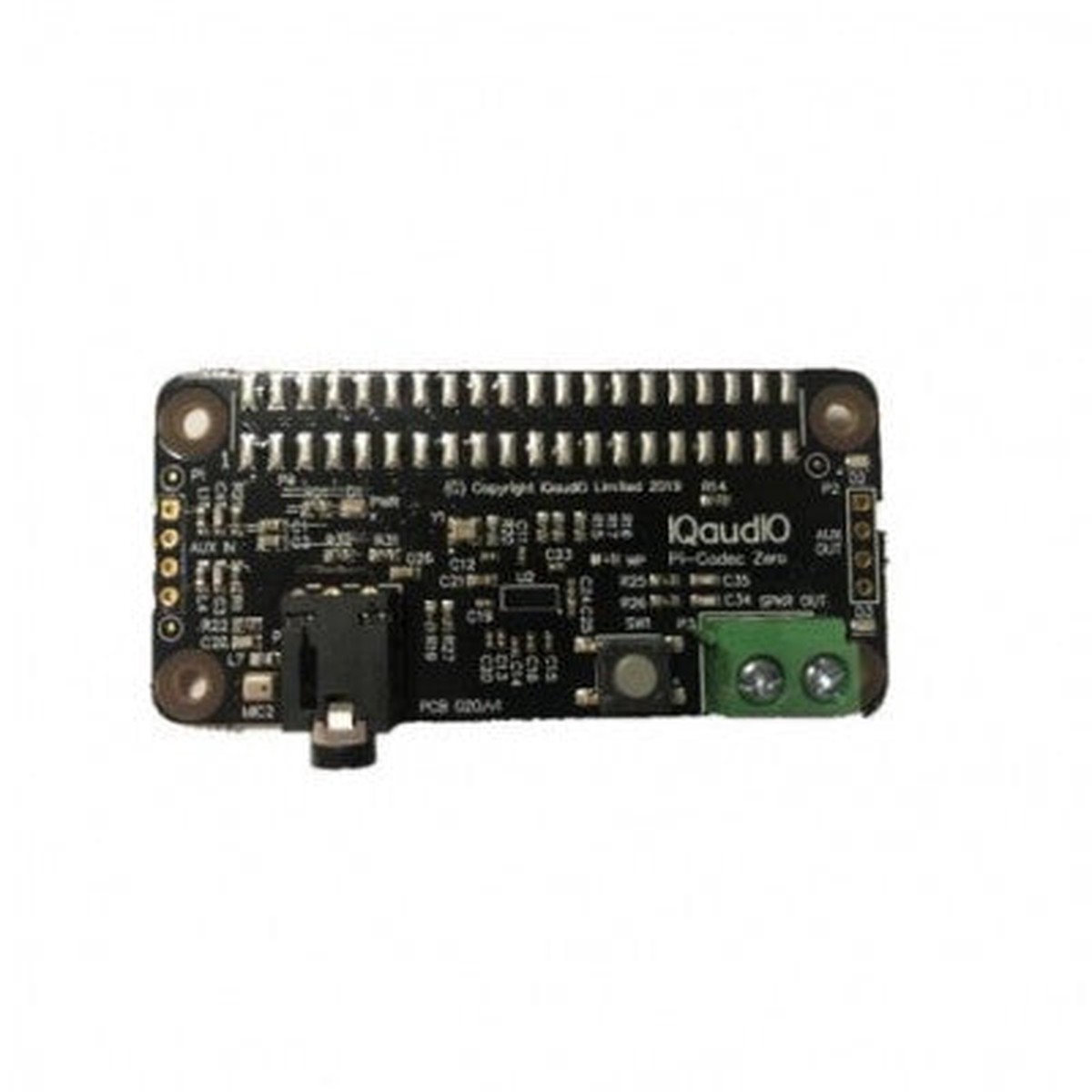

Codec Zero

Raspberry Pi Zero-sized board with HAT EEPROM for auto-configuration

• Size: Same as Raspberry Pi Zero
• Designed for: Audio signal input and output processes
• Supports:
  • Built-in MEMS microphones
  • Mono Electret microphones
  • Mono speakers (1.2W 8)
• Delivers: Bi-directional digital audio signals (I2S) between Raspberry Pi and Dialog Semiconductor DA7212
• Features:
  • High-performance 24-bit audio codec
  • Supports common audio sample rates between 8-96kHz
  • Built-in MEMS microphone (Mic2)
  • Mono Electret microphone (Mic2 left)
  • Automatic MEMS disabling on Mic2 insert detect
  • Stereo auxiliary input channel (AUX IN) PHONO/RCA connectors
  • Stereo auxiliary output channel (Headphone / AUX OUT) 3.5mm Stereo jack
  • Flexible analog and digital mixing paths
  • DSP for ALC (Automatic Level Control)
  • 5-band EQ (Equalisation)
  • No soldering required
  • Mono line-out / mini speaker driver: 1.2W @ 5V, THD<10%, R=8
• Package Includes: 1 x Raspberry PI IQ Audio Codec Zero

The Codec Zero makes a great starting point for a walkie-talkie / intelligent doorbell, vintage radio hack, or Smart-type speaker.
